Symbol and Schematic Generator

Symbol generation and schematic capture in abstraction accessible via eMail for Cadence Concept, Viewlogic Viewdraw, Protel Advanced Schematic and opensource gEDA gschem. The site is currently under construction, to include a component browser and an interactive symbol generator for use during web sessions.

To get acquainted, try (demo) for an example session

For access to the library, try (scan) to look for parts

Project, try (scan) to look for boards

As the electronics industry moves away from off the shelf logic toward more widespread use of configurable logic (pld's, fpga's and asic's), there's been a need for alternative methods of schematic entry that are more efficient at handling components whose pinout change with each application.

(nfo)lvds9637

(eps)lvds9637

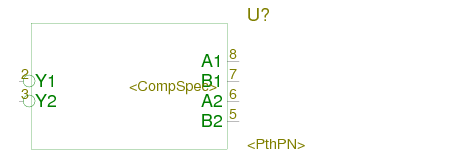

(png)lvds9637
